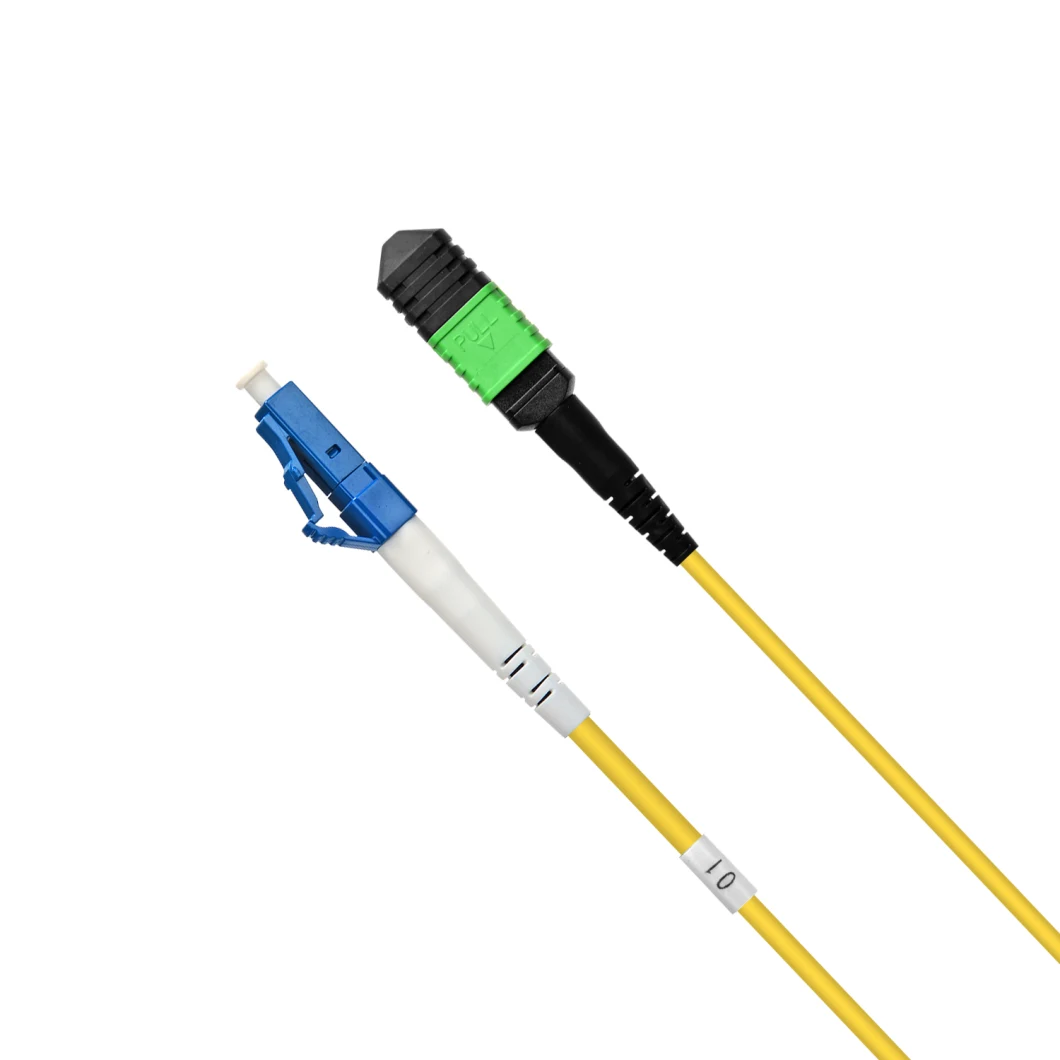

Fiber Optic MPO MTP Elite Trunk Cable SM 8core Patch Cord
Patch cords and Pigtails
Optical patch cord Ordering Information
Patch cords and Pigtails
| Applications | Features |
| Long-distance trunk network, Metro- area network, access network DWDM system Optical fiber CATV Optical fiber data network Optical active device. | Low insertion loss High return loss Good duplication, and interchangeability |
| Parameter | Specification | |
| FC/PC,FC/UPC,FC/APC,SC/PC,SC/UPC,SC/APC,ST/PC,ST/UPC,ST/APC,MU/PC,MU/APC,LC/PC,LC/APC | ||
| Single mode | Multi mode | |
| Insertion loss (typical ) (dB) | Typical Value 0.1 maximum Value 0.3 | Typical Value 0.1 maximum Value 0.2 |
| Return loss (typical ) (dB) | PC≥50,UPC≥55,APC≥60 | ≥36 |
| Duplicated (dB) | ≤0.1 | |
| Interchangeable (dB) | ≤0.2 | |
| Inserts pulls out the number of times (time) | ≥1000 | |
| Operating temperature (°C) | -25~+70 / -40~+80 /-40~+75 | |
Optical patch cord Ordering Information
| OFC | Port 1 | Port 2 | Fiber type | Cable outer dimension (Φ) | ||
| Connector type | End-face type | Connector type | End-face type | |||
| FC,SC ST,LC MU | PC,UPC APC | O:pigtail, FC,SC ST,LC MU | O:pigtail, PC,UPC APC | S=G.625 H=G.655 M=Multi mode (50/125um) D=Multimode(62.5/125um) | 09=0.9mm 20=2.0mm 30=3.0mm 33=3.0mm dual core cable 22=2.0mm dual core cable 00=customer Spec. | |
