Hot Selling Fiber Optic Equipment 16 Way Fiber Optic PLC Splitter Fiber Optic Splitter

Description:

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.

It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks

to realize optical signal power splitting.SUNET provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.

All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 equirements.
Hot Selling Fiber Optic Equipment 16 Way Fiber Optic PLC Splitter Fiber Optic SplitterHot Selling Fiber Optic Equipment 16 Way Fiber Optic PLC Splitter Fiber Optic Splitter



Features

Low Insertion loss and Low PDL
Uniform power splitting
High reliability
Excellent environmental stability
Compact size and various package



Applications

FTTx Systems
Digital, hybrid and AM-Video systems
LAN,WAN and Metro Networks
CATV systems
Other applictaions in fiber optic systems

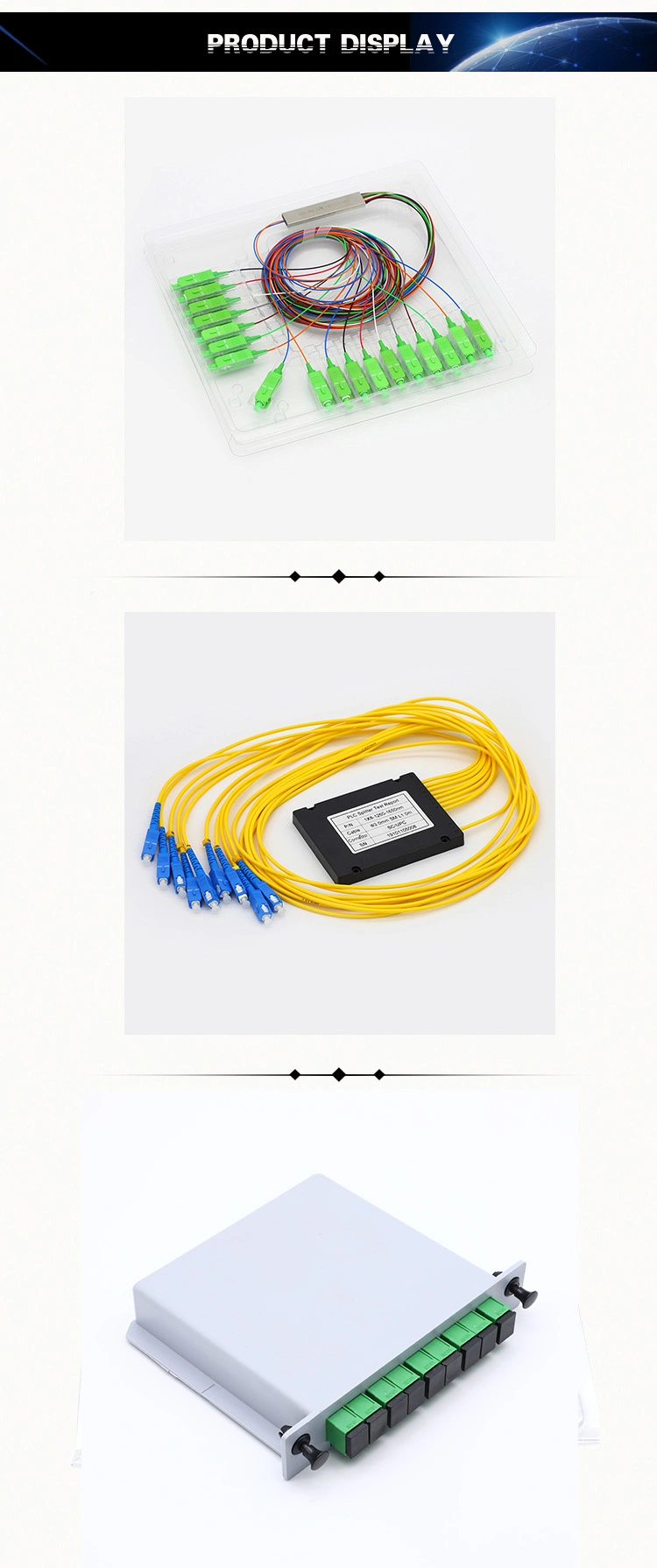

Types

 1.    Bare Fiber type PLC splitter

2.    Steel Tube type PLC splitter

3.    ABS Box Type PLC Splitter

4.    Cassette type PLC splitter Module

5.    Rack type PLC splitter Module

6.    Tray assembly PLC splitter Module

Hot Selling Fiber Optic Equipment 16 Way Fiber Optic PLC Splitter Fiber Optic Splitter

Specifications

 1×N PLC Splitter

Parameters

1×2

1×4

1×8

1×16

1×32

1×64

Operating Wavelength (nm)

 1260~1650

Fiber Type

SMF-28e or customer specified

Insertion Loss (dB)(S/P Grade)

 4.0/3.8

 7.3/7.0

 10.5/10.2

13.7/13.5

16.9/16.5

21.0/20.5

Loss Uniformity (dB)

0.4

0.6

0.8

1.2

1.5

2.5

Return Loss (dB) (S/P Grade)

50/55

50/55

50/55

50/55

50/55

50/55

Polarization Dependent Loss(dB)

0.2

0.2

0.3

0.3

0.3

0.4

Directivity (dB)

55

55

55

55

55

55

Wavelength Dependent Loss(dB)

0.3

0.3

0.3

0.5

0.5

0.5

Temperature Stability(-40~85 ºC)(dB)

0.5

0.5

0.5

0.5

0.5

0.5

Operating Temperature (ºC)

-40~85

Storage Temperature (ºC)

-40~85

Packaging Dimension (mm)   (L×W×H)

40×4×4

40×4×4

40×4×4

40×4×4

50×7×4

60×12×4



 Notes:

1.  Specified without connectors.

2.  Add an additional 0.2dB loss per connector
