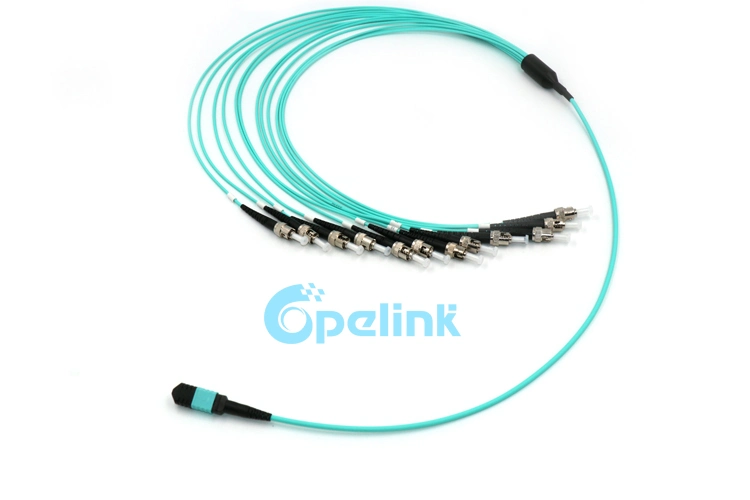

12-Fiber MTP/MPO-ST Om3 Round Fiber Cable Fanout 2.0mm Fiber Optic Patchcord/jumper
Description:
Connectorized cable assemblies are cord-type fiber optical cables terminated with connectors at both end. The type of cable fiber and connector and the length of the patchcord can be freely specified by the customer as shown below. Pigtails are used for terminating fiber optical cables by splicing them the fibers of the cable and connecting the other end, which supplied with a connector to a patch panel or directly to equipment.
Connectorized cable assemblies are cord-type fiber optical cables terminated with connectors at both end. The type of cable fiber and connector and the length of the patchcord can be freely specified by the customer as shown below. Pigtails are used for terminating fiber optical cables by splicing them the fibers of the cable and connecting the other end, which supplied with a connector to a patch panel or directly to equipment.
Feature:
.Low insertion loss, high return loss
.MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
.Economical solution for mass-termination of fiber
.Designed for low loss and standard loss SM and MM applications
.Ruggedized round cable, oval cable and bare ribbon options available
.Color coded housings available to differentiate fiber type, polish type and/or connector grade
.Good in repeatability and exchangeability
.MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
.Economical solution for mass-termination of fiber
.Designed for low loss and standard loss SM and MM applications
.Ruggedized round cable, oval cable and bare ribbon options available
.Color coded housings available to differentiate fiber type, polish type and/or connector grade
.Good in repeatability and exchangeability
Applications:
.MPO Cassettes
.MPO Patch Panel
.ODF of optical transmission system
.metro test equipment;
.Telecommunication networks
.Local area networks (LAN);
.Wide area networks (WAN);
.Premise installations;
.Data processing networks;
.Video and military active device termination.
.Optical Distribution Frame
.Optical Network Equipments
Optical Specification(MPO Connector):
| Parameter | Singlemode Patchcord | Multimode Patchcord | ||
| Polishing Type | PC | APC | PC | |
| Insertion loss(dB) | Max. | <=0.7dB | <=0.7dB | <=0.7dB |
| Typical | <=0.35dB | <=0.35dB | <=0.35dB | |
| Return loss(dB) | >=50dB | >=60dB | ≥20dB | |
| Operating temperature | -20ºC~75ºC | |||
| Storage Temperature | -40ºC~75ºC | |||
| 500 mating cycles loss | I.L changed≤0.2dB | |||
| Durability | >1000 cycles | |||
Optical Specifications(Other Connector):
| Parameter | Singlemode Patchcord | Multimode Patchcord | ||
| Polishing Type | PC | UPC | APC | PC |
| Insertion loss(dB) | <=0.3dB,MTRJ<=0.5dB | <=0.3dB | <=0.3dB | <=0.3dB,MTRJ<=0.5dB |
| Return loss(dB) | >=45dB,MTRJ>=35dB | >=55dB | >=65dB | |
| Operating temperature | -20ºC~75ºC | |||
| Storage Temperature | -40ºC~75ºC | |||
| 100 mating cycles loss | I.L changed≤0.1dB | |||
| Durability | >1000 cycles | |||
Ordering information:
| Type | Fiber Core | Cable Type | Cable OD | Cable Material | Cable Color | Connector (A End -B End) | Patchcord Length |
| PT=Patchcord PY=Pigtail | S1=G652D S2= G657A1 M1=50/125 M2=62.5/125 M3=OM3 M4=OM4 XX=other | 01=simplex 02=Duplex 03=Armoured 04=Distribution 05=Ribbon 06=breakout XX=other | 01=OD 0.9mm 02=OD 2.0mm 03=OD 3.0mm XX=other | 1=PVC(R) 2=PVC(P) 2=LSZH | 01=Blue 02=Orange 03=Green 04=Brown 05=Slate 06=White 07=Red 08=Black 09=Yellow 10=Violet 11=Rose 12=Aqua 13=12Color XX=other | 01=SC 02=FC 03=ST 04=LC 05= E2000 06=SC/APC (Cone Type) 07= SC/APC (Step Type) 08= FC/APC (Cone Type ) 09= FC/APC (Step Type) 10=LC/APC 11=E2000/APC 12=MTRJ 13=MPO/PC 14=MPO/APC 15=D4 16=DIN 17=LX5 18=FDDI 00=None XX=other | 005=0.5m 010=1.0m 020=2m 025=2.5m XXX=other |
